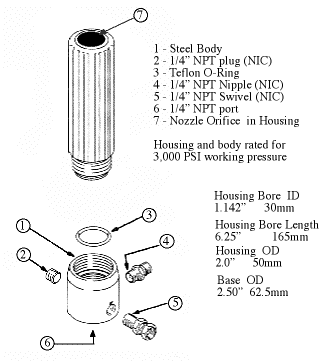

    Boilerplate Liquid Test Motor

    LR-2

    A great foundation for experimenting in liquid motor research.

    Intended injector is a simple coaxial design perfect for gaseous nitrous oxide and isopropyl alcohol.

    This housing and base is American made and has a 3,000 PSI working pressure!
    Steel base has 4 each 1/4" NPT ports. The 3/8" thick aluminum housing threads into the base for simplicity of operation.

     2.5" OD Base Diameter fits nicely in most standard test stands.

    Base Unit - $250.00
    Replacement O-ring - $2.75
